PAPERCRAFT OBJECTS: FIRST PROTOTYPE] ( accidents happened )

inner bucket for pen



make 2d with taps version

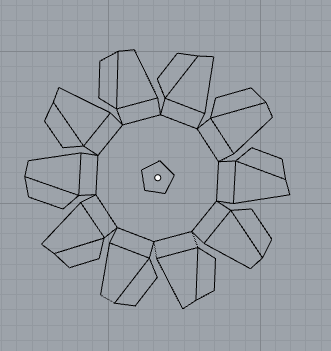

unrolled pen / unrolled pen with taps

                                                         pen holder with taps unrolled version

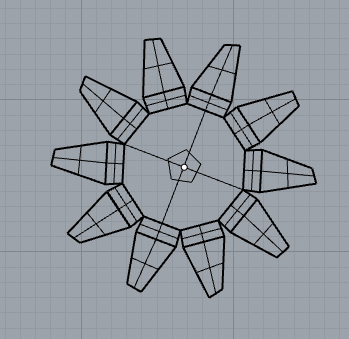

Pen holder unrolled version with taps

I down-scaled both to fit them on a 8.5x11inch paper

Update: I did a hand curve version, but that went bad as it doesn't stick together due to the fact the hidden line is just too small for me to make permanent dents, and later I went to get help from our class technician who kindly showed me how to use a laser cutter, I was able to get a better-crafted version of unfolding.

Update: I cannot complete the prototype because of my miscalculation in the making process, I ignore the fact that the fold lines are way too close to each other, and when printed onto 8.5 x 11-inch
paper, it's almost impossible for me to think of a way to properly fold them, I am deeply regretful that I did not make this bigger, and I have now doubts about if I should continue this further in the next project or simply rebuild another model that is simpler but easier to manipulate.

update: My brother which has successfully created his prototype decided to help me with restructuring my model. I rebuilt a model that my brother suggested to me, and how I can do things better and more efficiently if I break them into different smaller pieces. and I also did the red and blue for laser cutting if necessary later down the line. the only problem, however, is getting the components to fit on paper because the container is too small for someone with the big parts of the pen.
